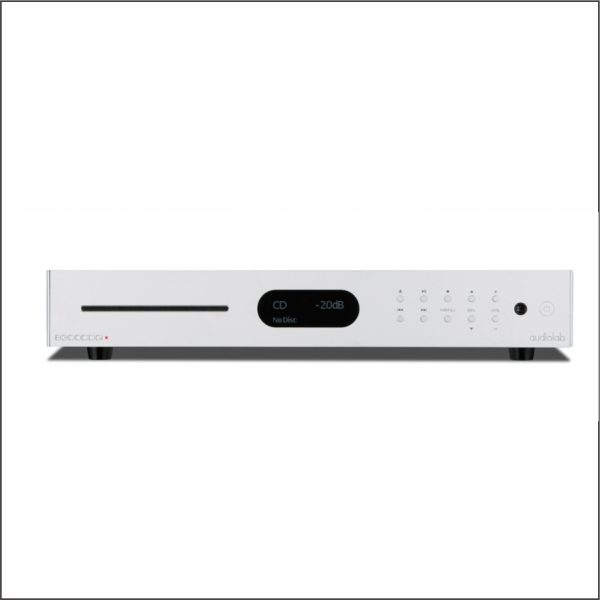

CD Player / DAC / Preamplifier
To this speciﬁcation the new 8300CDQ adds high-quality analogue preamp circuitry, coupled to three stereo pairs of line-level RCA inputs to connect analogue sources. The preamp circuitry is kept as simple as possible using high-quality components to maintain signal purity, with line input signals passing to a precision analogue volume stage. Much eﬀort has gone into the physical layout of the 8300CDQ’s circuitry, protecting the sensitive preamp section from noise interference.
Taking it to the next level the 8300CDQ now includes MQA technology, which enables you to play back MQA audio files and streams, delivering the sound of the original master recording.
MQA (Master Quality Authenticated) is an award-winning British technology that delivers the sound of the original master recording. The master MQA file is fully authenticated and is small enough to stream or download.
The Sound of Science
The 8300CDQ adds further ﬂexibility by incorporating a dedicated direct-coupled headphone amp with current-feedback circuitry. Accessed via a front-mounted 6.35mm socket, its gain bandwidth and high slew rate ensure a dynamic, detailed and engaging performance with all manner of headphone types.
The ﬁnal key feature introduced in the 8300CDQ is decoding of MQA (Master Quality Authenticated). The brainchild of Meridian Audio co-founder Bob Stuart, MQA is a digital audio format designed for high-resolution music streaming and is available via subscription to Tidal’s ‘HiFi’ tier (among other sources). The 8300CDQ unpacks MQA data – received via the USB input – at the original ﬁle’s full resolution and passes the signal through its DAC and preamp stages, ready to feed a power amp or active speakers.
Audiolab’s MQA decoding solution was developed by John Westlake, one of Britain’s foremost digital audio experts. There are various ways to enable MQA playback on audio devices, and not all are equal sonically. Westlake’s solution maximises the format’s potential, just as the 8300CDQ’s design draws the best sound quality from other audio codecs and, of course, CDs
• Slot-loading CD transport mechanism
Fast in operation and neat in design, the 8300CDQ’s slot-loading CD transport delivers excellent reliability. A read-ahead digital buﬀer reduces disc-reading errors, enabling scratched CDs that are unreadable by conventional mechanisms to be played. High disc stability and low susceptibility to resonance contribute to the 8300CDQ’s superb CD sound quality.
• High-resolution digital inputs
Five digital inputs comprise 1x asynchronous USB and 4x S/PDIF (2x coaxial and 2x optical). Hi-res digital audio is supported up to 32-bit/384kHz PCM and DSD256, and USB HID compatibility enables driverless control of a connected PC, Mac or media player.
• 32-bit ESS Sabre DAC
The CD transport and digital inputs feed a DAC section with an ESS Sabre32 Reference chip nestling at its heart, utilising HyperStream architecture and ESS Technology’s Time Domain Jitter Eliminator to deliver ultra-low noise and high dynamic range. No company knows more about making the most of this 32-bit, eight-channel hybrid multi-bit Delta-Sigma DAC technology than Audiolab; the 8200CD and 8200CDQ were among the ﬁrst audio components to use it and the company has been honing its implementation ever since. The conversion process involves 512 DAC elements (256 per channel) each operating at 84.672MHz – all digital audio sources, whatever the sample rate, are upsampled or oversampled to this frequency.
• Exemplary jitter reduction
Around the DAC chip are extensive measures to reduce jitter (digital distortion) to vanishingly low levels. Careful circuit layout and low-noise power supplies complement the DAC’s patented Sabre32 sample rate converter and clever DPLL (Digital Phase Locked Loop) circuit, radically reducing time domain errors from all digital input sources.
• Time domain isolation
While the Sabre32 sample rate converter virtually eliminates jitter within the digital domain, external ‘analogue domain’ induced artefacts caused by RF breakthrough, PSU coupling and so on will aﬀect the DAC’s sonic performance. Audiolab resolves this issue via its CATDA (Cascaded Asynchronous Time Domain Attenuator) circuit. This circuit isolates the DAC substrate from sonically deleterious artefacts that aﬀect non-synchronous digital input data. To achieve the best possible performance, three identical cascaded stages are used – each individual stage provides increased isolation, thereby maximising timing performance, even at higher RF frequencies.
• Selectable digital ﬁlters
As digital audio reproduction technology has progressed, the importance of the characteristics of reconstruction digital ﬁlters has become more appreciated. The Audiolab 8300CDQ features seven user-selectable ﬁlters for PCM audio data (including CD) and four ultrasonic ﬁlters for DSD data. These settings allow the user to tune the 8300CD’s performance according to system conﬁguration, digital ﬁle quality and personal taste.
• Discrete Class A analogue stages and sophisticated power supply
The 8300CDQ’s analogue output stages and power supply are exceptionally well speciﬁed in the pursuit of sonic excellence. The circuitry includes a large, low-noise toroidal transformer, a plethora of reservoir/smoothing capacitors, an impressive number of regulator chips and discrete transistor (instead of op-amp) analogue stages at the output with ultra-low impedance to drive any cable and any load. The power supply incorporates 29 regulated supply rails including multiple ultra-low-noise regulators, with extensive measures against power supply contamination and cross-coupling.
|Finish||Fine Textured Aluminium (Black / Silver)|
|Display||POLED 128×64 pixels 2.7″|
|DSD Compatible||Yes (DSD64 / DSD128 / DSD256)|
|DAC||ESS Sabre32 9018 chip|
|Sampling Frequency||Optical,Coaxial, AES: 32kHz – 192kHz|
|USB:32kHz – 384kHz(PCM) / DSD64, DSD128, DSD256|
|Maximum Sampling Frequency||Optical,Coaxial, AES: 192kHz|
|USB: 384kHz (PCM) / 11.2M (DSD256)|
|Output Voltage||4.2Vrms ±0.1 (Balanced)|
|2.1Vrms ±0.1 (Unbalanced)|
|Total Harmonic Distortion (THD)||<0.002% (1kHz, 0dB, 20Hz ~ 20kHz, A weighted)|
|Frequency Response||20Hz – 20kHz (± 0.2dB)|
|Signal to Noise Ratio (S/N)||<-100dB A Weighted (Balanced)|
|<-98dB A Weighted (Unbalanced)|
|Dyanmic Range (A Weighted)||>100dB (Balanced)|
|Crosstalk (@1kHz)||<-130dB (Balanced)|
|Standby Power Consumption||<0.5W|
|Power Requirements||240V ~ 50 – 60Hz|
|230V ~ 50 – 60Hz|
|115V ~ 50 – 60Hz|
|100V ~ 50 – 60Hz|
|Dimension(mm) (W x H x D)||444 X 80 X 317|
|Carton size(mm) ( W X H X D)||500 x 140 x 455|
